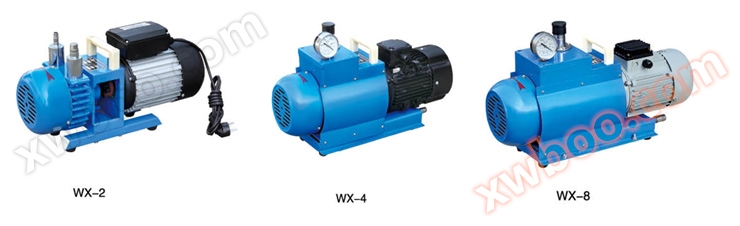

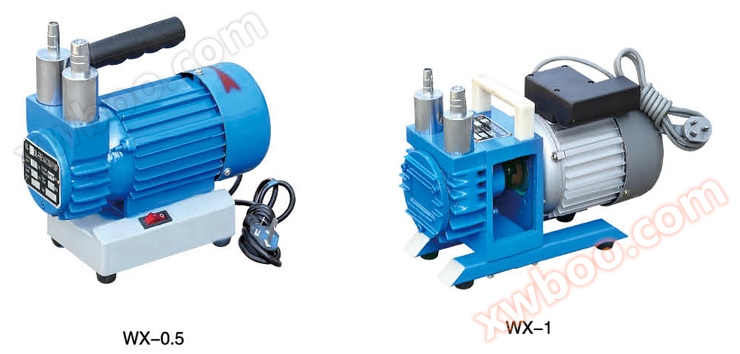

WXZ oil-free direct coupled rotary vane vacuum pump
WXZ oil-free direct coupled rotary vane vacuum pump
Product details
Material: |
stainless steel |
|---|---|
Type: |
vacuum pump |
Brand: |
Jieyou |
Model: |
WXZ |
Customized processing: |
yes |
detailed explanation
1、 Overview of WXZ type oil-free direct coupled rotary vane vacuum pump:
The WXZ oil-free direct coupled rotary vane vacuum pump is a clean vacuum pump that can operate without the need for oil lubrication, and will not pollute the environment or the products being processed. Suitable for vacuum drying and vacuum concentration operations, it can be widely used in fields such as pharmaceuticals, chemicals, food, medical devices, printing, bookbinding, packaging, vacuum forming, and laboratories.
2、 Characteristics of WXZ type oil-free direct coupled rotary vane vacuum pump:
1. Due to the absence of oil vapor in the WXZ oil-free direct coupled rotary vane vacuum pump, the working environment and processed products will not be contaminated by oil when in use, making it the most ideal vacuum equipment for use in industries that strictly require oil-free vapor.
2. Compared to vacuum pumps that do not require oil lubrication, oil-free vacuum pumps can greatly reduce regular maintenance and upkeep, without the inconvenience and trouble caused by the lack of vacuum oil for repairs.
3. The WXZ type oil-free direct coupled rotary vane vacuum pump is directly connected to a motor, with a compact structure, light weight, and smaller external dimensions than other types of pumps.
4. The WXZ type oil-free direct coupled rotary vane vacuum pump uses multi blade high-speed rotation to avoid pulse fluctuations in the suction and exhaust processes.
5. The WXZ type oil-free direct coupled rotary vane vacuum pump can operate continuously in open air.
3、 Performance parameter table of WXZ oil-free direct coupled rotary vane vacuum pump:
3、 Performance parameter table of WXZ oil-free direct coupled rotary vane vacuum pump:
|
Parameters/Model |
WX-0.5 |
WX-1 |
WX-2 |
WX-4 |
WX-8 |
|
pumping speed(L/s) |
0.5 |
1 |
2 |
4 |
8 |
|
Ultimate pressure（MPa） |
≤4×10-2 |
≤2×10-2 |
≤2×10-2 |
≤2×10-2 |
≤2×10-2 |
|
Rotational speed（r/min) |
1400 |
1400 |
1400 |
1400 |
1400 |
|
Motor power（kw) |
0.12 |
0.25 |
0.37 |
0.55 |
0.75 |
|
Power supply voltage（V) |
220 |
220/380 |
220/380 |
380 |
380 |
|
Inlet diameter（mm） |
12 |
12 |
12 |
30 |
30 |
|
Overall dimensionsmm) |
240×120×210 |
320×160×240 |
440×160×240 |
510×190×330 |
540×190×330 |
|
gross weight/Net weight (Kg) |
11/10 |
14/13 |
16/15 |
28/23 |
36/30 |
Other vacuum pump products: 2X type two-stage rotary vane vacuum pump, 2XZ type two-stage rotary vane direct connection vacuum pump, WXZ type oil-free direct connection rotary vane vacuum pump, XZ type direct connection vacuum pump, XD type single-stage rotary vane vacuum pump, 2BV type water ring vacuum pump, SKA type water ring vacuum pump, 2SK type water ring vacuum pump, SK series water ring vacuum pump, SK series direct connection water ring vacuum pump, SZ series water ring vacuum pump, 2BE series water ring vacuum pump, SZB series water ring vacuum pump, ZJ series Roots vacuum pump, JZJS type Roots water ring vacuum pump Unit
Pump category products: centrifugal pump, vacuum pump, diaphragm pump, magnetic pump, chemical pump, self-priming pump, screw pump, sewage pump, submersible pump, deep well pump, pipeline pump, metering pump, gear pump, oil transfer pump, oil drum pump, plunger pump, rotary pump, reciprocating pump, submersible pump, vortex pump, multi-stage pump, pressure testing pump, pulp pump, sanitary pump, fiberglass pump, fluoroplastic pump, engineering plastic pump, water pump control cabinet, complete water supply equipment
Ordering instructions for WXZ oil-free vacuum pump:
1、 Please provide the following detailed data: ① Product name and model of WXZ oil-free vacuum pump ② Vacuum degree requirements of WXZ oil-free vacuum pump in units of PA or MPA ③ Pumping speed requirements of WXZ oil-free vacuum pump in units of L/S or M3/MIN ④ Usage and power conditions of WXZ oil-free vacuum pump ⑤ Motor power (KW) of WXZ oil-free vacuum pump ⑥ Speed (r/min) of WXZ oil-free vacuum pump ⑦ Voltage of WXZ oil-free vacuum pump [V] ⑧ Inlet and outlet diameters of WXZ oil-free vacuum pump ⑨ Does WXZ oil-free vacuum pump come with accessories for us to correctly select for you.
2、 If the design unit has already selected the product model of our company's WXZ oil-free vacuum pump, please order directly from the company's sales department according to the WXZ oil-free vacuum pump model.
3、 When the usage situation is very important or the environment is complex, please provide design drawings and detailed parameters as much as possible, and our technical experts will confirm the selection for you.
