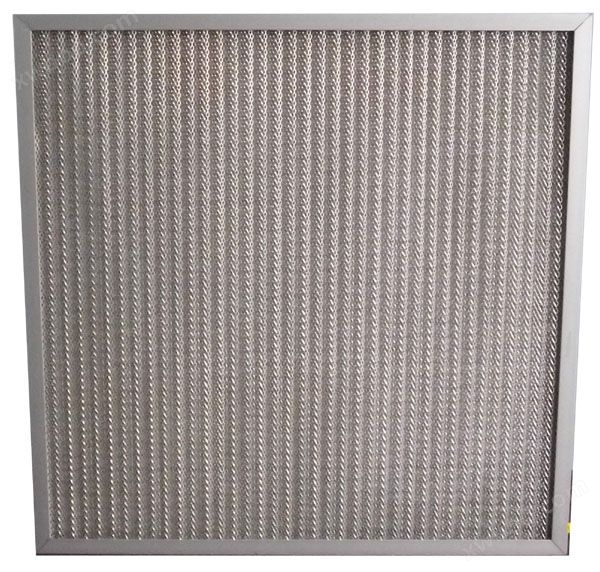

(Double called aluminum mesh filter or stainless steel mesh air filter, and metal hole mesh initial effect filter, etc.), its structure is composed of multi-level intersecting corrugated aluminum mesh or stainless steel mesh; Due to its multi-level filtering structure, the filtering area has been increasedMoreover, it has low resistance, can be repeatedly cleaned, and is highly economical; The outer frame is generally designed as an aluminum frame, and the filter material is usually a metal wave like mesh structure such as aluminum mesh or stainless steel mesh.

Characteristics of metal mesh filter:

Purpose: Coarse dust filtration (suitable for high temperature environments); Pre filtration of air filtration system

Type: Flat metal mesh filter

Frame: Galvanized steel sheet, aluminum alloy or stainless steel

Filter material: Nylon mesh, aluminum mesh, or stainless steel wire mesh

Protective mesh: aluminum mesh or stainless steel mesh

EN 779 level: G2-G3

Average weight efficiency: 65% -80% (ASHRAE 52.1-1992)

Minimum efficiency report value: MERV 2-5 (ASHRAE 52.2-1999)

Final resistance: (recommended) 150Pa - (maximum) 250Pa

Maximum air volume: 125% of rated air volume

Temperature resistance: 250 ℃

The characteristics of the metal mesh filter products produced by our company are:

1. Composed of corrugated filters of different specifications, arranged in a staggered manner on the inner frame to reduce gaps in the aluminum mesh and achieve better filtration.

For acidic, alkaline, or high-temperature environments, stainless steel frames and stainless steel corrugated nets can be used for production.

3. The product has the characteristics of high air volume, low resistance, repeatable cleaning and use, and long service life.

Metal mesh filter | Aluminum mesh filter | Stainless steel mesh filterApplicable places: Central air conditioning range hood and primary filter, special acid, alkali, or high temperature resistant ventilation filter.

Materials and operating conditions for metal mesh filters:

filter material Aluminum or stainless steel corrugated mesh Frame material Aluminum profiles/aluminum plates/galvanized iron/stainless steel protection net Galvanized grid, galvanized iron wire, stainless steel wire, and tension bar Using the highest temperature 300℃ Use maximum humidity 100% Aluminum profiles with optional thickness 10~50mm

Table of correspondence between length and width dimensions/air volume:
Dimensions (H x W)		Air Flow
(Inches)	(mm)	m3/Hr @2.5m/s
24×24	592×592	3400
24×12	592×287	1645
24×20	592×490	2810
20×20	490×490	2325

Parameter description of metal mesh filter:

level	Weight efficiency	size			Rated air volume (m3/h)	initial resistance (Pa)
		Length (mm)	Height (mm)	Thickness (mm)
G2	65-70%	592	592	10-15	1800	20
G2	65-70%	592	592	20-25	1800	25
G2	65-70%	592	592	45-50	3000	35
G3	75-80%	592	592	10-15	1800	30
G3	75-80%	592	592	20-25	1800	40
G3	75-80%	592	592	45-50	3000	50

Note:Metal mesh filters can be customized according to customers' actual needs!
