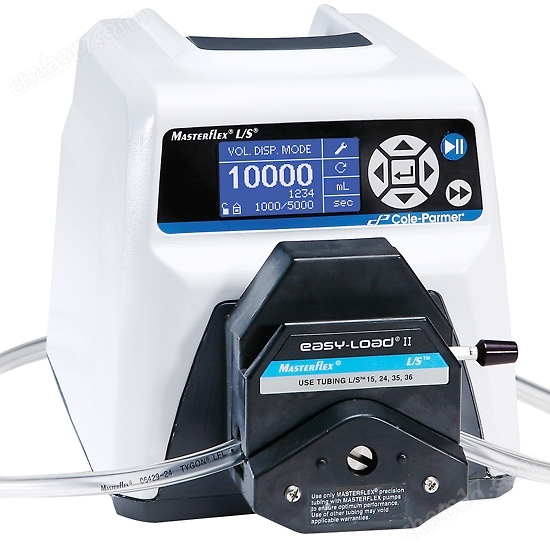

Imported Masterflex L/S standard digital variable speed peristaltic pump from the United States
The imported Masterflex L/S standard digital variable speed peristaltic pump precision digital driver from the United States has a high-precision main
Product details
Imported Masterflex L/S standard digital variable speed peristaltic pump from the United States
Imported Masterflex L/S standard digital variable speed peristaltic pump from the United States

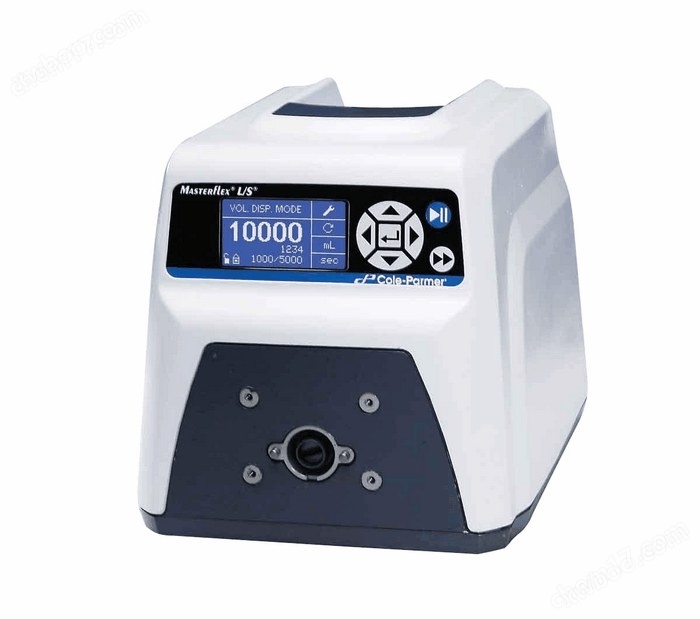

The precision digital driver features a high-precision maintenance free motor, a brand new graphical display interface, and more convenient settings and operations than ever before
• Flow rate range: 0.001~3400 mL/min when using L/S pump tubing. The flow rate depends on the driver speed and pump tube size.
The LCD graphical interface displays four operating modes: continuous operation, timed allocation, repeated allocation, and volume allocation. You can observe the operation of the pump at any time.
Brushless, maintenance free motor with speed control accuracy of ± 0.1% and adjustment ratio of 6000~1
Menu driven interface, available in 7 languages for programming and operation
• It can be divided according to: mL - volume allocation, with each volume ranging from 0.001 to 9999 mL; COPY - repeated allocation, with repetition times ranging from 1 to 9999; Or SEC - time interval allocation, with intervals between every two allocation cycles (up to 99:59:59)
The DB25 female connector on the drive allows for remote control of the drive
— 0~20 mA，4~20 mA， Or from 0 to 10.
- Running direction: open or contact closed
- Run/Stop/Clean: Open or Close Contact
Pulse tachometer signal output 0~20 mA, 4~20 mA, 0~10 V, open collector
It can also simulate remote control and perform simple programming operations - very suitable for automated processing applications. Programmable allocation time intervals can be set, and delay times can be set between each allocation cycle to achieve convenient automated allocation.
With precise PWM speed control (± 0.1%), it maximizes work accuracy and efficiency. The brushless motor has low noise and is maintenance free. Program calibration ensures precise allocation and display - the driver can store a set of calibration data for each size of pump tube.
The driver can be programmed through a convenient membrane keyboard, and the keyboard lock/unlock function can protect the set values. Bidirectional motor, can clean the pump tube before and after operation, and works in both directions.
Drivers can be securely stacked to save space. Anti splash, anti dust ABS plastic shell; IP33 protection level.
Randomly equipped:1.8-m power cord with IEC 320/CEE22 socket. Please indicate the location of the device when placing an order, so that we can provide the correct power cord and plug.
| rotational speed | Precision pump tube | Efficient and precise pump tube | ||||||||
| L/S 13 | L/S 14 | L/S 15 | L/S 16 | L/S 17 | L/S 18 | L/S 15 | L/S 24 | L/S 35 | L/S 36 | |
| Standard Type † Easy-Load、Easy-Load II、Easy-Load 3 | Multi channel ‡, standard type † Easy-Load II、Easy-Load 3、 Efficient | |||||||||
| Card type, multi-channel | Card type | Easy-Load | ||||||||
| 0.1~600 | 0.006~36 | 0.021~130 | 0.08~480 | 0.17~1000 | 0.28~1700 | 0.38~2300 | 0.17~1000 (0.18~1100) | 0.28~1700 (0.30~1800) | 0.38~2300 (0.43~2600) | 0.48~2900 (0.57~3400) |
| 0.02~100 | 0.001~6 | 0.004~21 | 0.016~80 | 0.033~170 | 0.057~280 | 0.077~380 | 0.033~170 (0.036~183) | 0.057~280 (0.057~300) | 0.077~380 (0.086~433) | 0.096~480 (0.113~566) |
† Standard pump head cannot be used for L/S ® 25 pump tubing. The multi-channel pump head cannot be used for L/S 36 pump tubing. Multi channel and cartridge pump heads can be used for microporous tubes.
Parameters and ordering information
| Rotational speed (rpm) | SPEED CONTROL | Acceptable number of pump heads | MOTOR | IP | size | Power supply (50/60 Hz) | Item number | |
| (Repeatability) | protection grade | (Length x Width x Height) | VAC | Amps | ||||
| 0.1~600 | ± 0.1% (at 600rpm: 1rpm; At 100 rpm: 0.01 rpm) | 2 | 1⁄10 hp (75 W) | IP33 | 10' x 8.5' x 8.5' | 90~260 | 2.2 (at 115 VAC) | 07522-20 |
| 0.02~100 | 4 | (25.4 x 21.6 x 21.6 cm) | 1.1 (at 230 VAC) | 07522-30 | ||||
attachment
07523-92 foot switch, momentary switch; 6-ft (1.8-m) cable
07523-94 DB25 male connector. You can use it to customize the connecting cable
07523-95 connection cable, DB25 male connector and 25 ft (7.9 m) long cable with stripping head for remote control
07523-97 handheld remote controller; The pump tube passes through the handle and is distributed into the container
17050-01 NIST Traceable Calibration Report, including peristaltic pump driver data
A complete peristaltic pump system includes
