Automatic Insulated Boots (Gloves) Voltage Test Device HZJY-105
The HZJY-105 fully automatic insulation boot (glove) withstand voltage test device is a specialized equipment for batch withstand voltage testing of i
Product details
1、 Product Overview:
The HZJY-105 fully automatic insulation boot (glove) withstand voltage test device is a specialized equipment for batch testing of insulation boots (gloves). It effectively solves the problem of irregular testing methods in the past, simplifies the testing program, improves the testing speed, reduces the testing intensity, and ensures the safety and reliability of the testing personnel. It can identify the leakage current, insulation aging, and power frequency withstand voltage parameters of insulation gloves (boots) and can simultaneously test six insulation gloves (boots). This device integrates high-voltage power supply and control system, with simple wiring and operation, reasonable and reliable layout, easy to move, flexible disassembly and assembly, and is an ideal replacement product. Execution standards: GB17622-1998, DL/T976-2005
Product alias: Protective tool insulation test bench, insulation boot glove withstand voltage test device, insulation boot glove withstand voltage tester, auxiliary insulation tool test device, insulation boot glove test device, live protective equipment insulation test device, insulation boot glove test machine, insulation boot glove test machineFully automatic insulation boot (glove) voltage withstand test device.
2、 Product features:
1. 320 × 240 LCD display, high-speed thermal printer.
2. High voltage, low voltage current, 6-channel leakage current, a total of 8 measurement methods using high-precision sensors and high-performance 14 bit AD acquisition chips.
3. The human-machine dialogue fully keyboard operation mode is intelligent, and the entire working process can choose between automatic and manual pressure resistance modes.
4. Real time display of high voltage, low voltage current, 6-channel leakage current time, and endurance results is intuitive and clear.
5. Automatically save settings data and display the previous settings data when powered on after power failure.
6. Complete overvoltage and overcurrent protection with arbitrary settings for output voltage, low voltage current upper limit, leakage current upper limit, and timing time.
7. The test can only be conducted safely and reliably after the return to zero detection function has been confirmed.
8. The approximate voltage regulation algorithm automatically reduces the voltage to zero after reaching the set voltage and the automatic withstand time timer ends.
9. When the set upper limit of low-voltage current or leakage current is exceeded, the voltage output will be automatically cut off, the voltage will be reduced to zero, and an audible and visual alarm will be issued.
10. Excellent software and hardware anti-interference design with multiple anti-interference methods to adapt to harsh electromagnetic environments.
11. Automatic error diagnosis is easy to detect and solve problems.
12. Optional options include remote communication, door interlock warning lights, alarm bells, and external voltage divider calibration interfaces.
Product Parameters
|
Rated capacity |
3~10 kVA |
|
input voltage |
AC220V±10% 50Hz±1 |
|
output voltage |
0～30kV、0～50kV |
|
Voltage accuracy |
≤1.5% (F.S) |
|
Low voltage current |
0～15A |
|
leakage current |
0～20.0mA |
|
Leakage current resolution |
0.1mA |
|
Current accuracy |
≤1.5% (F.S) |
|
Timing range |
0～999S |
|
ambient temperature |
－20℃～50℃ |
|
Note: Customization can be customized according to user needs. |
|
Product Brochure
Product accessories
|
name |
quantity |
unit |
|
Intelligent console host |
1 |
Taiwan |
|
Water tank installation vehicle |
1 |
Taiwan |
|
power cord |
1 |
root |
|
Supporting aviation plug-in cable |
1 |
root |
|
fuse |
3 |
only |
|
Instruction Manual |
1 |
this |
|
Inspection Report |
1 |
copy |
|
Certificate of Conformity |
1 |
Zhang |
Product Atlas
-
Intelligent safety tool, insulated boots, gloves, pressure resistant device
-
MEXC-6DT intelligent safety tool insulation boots gloves voltage resistance device
-

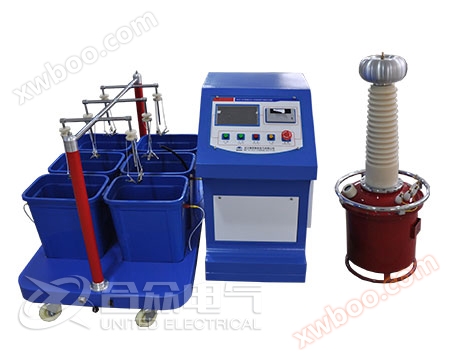

HZJY-105 Intelligent Safety Tool Insulation Boots Gloves Voltage Endurance Device
-

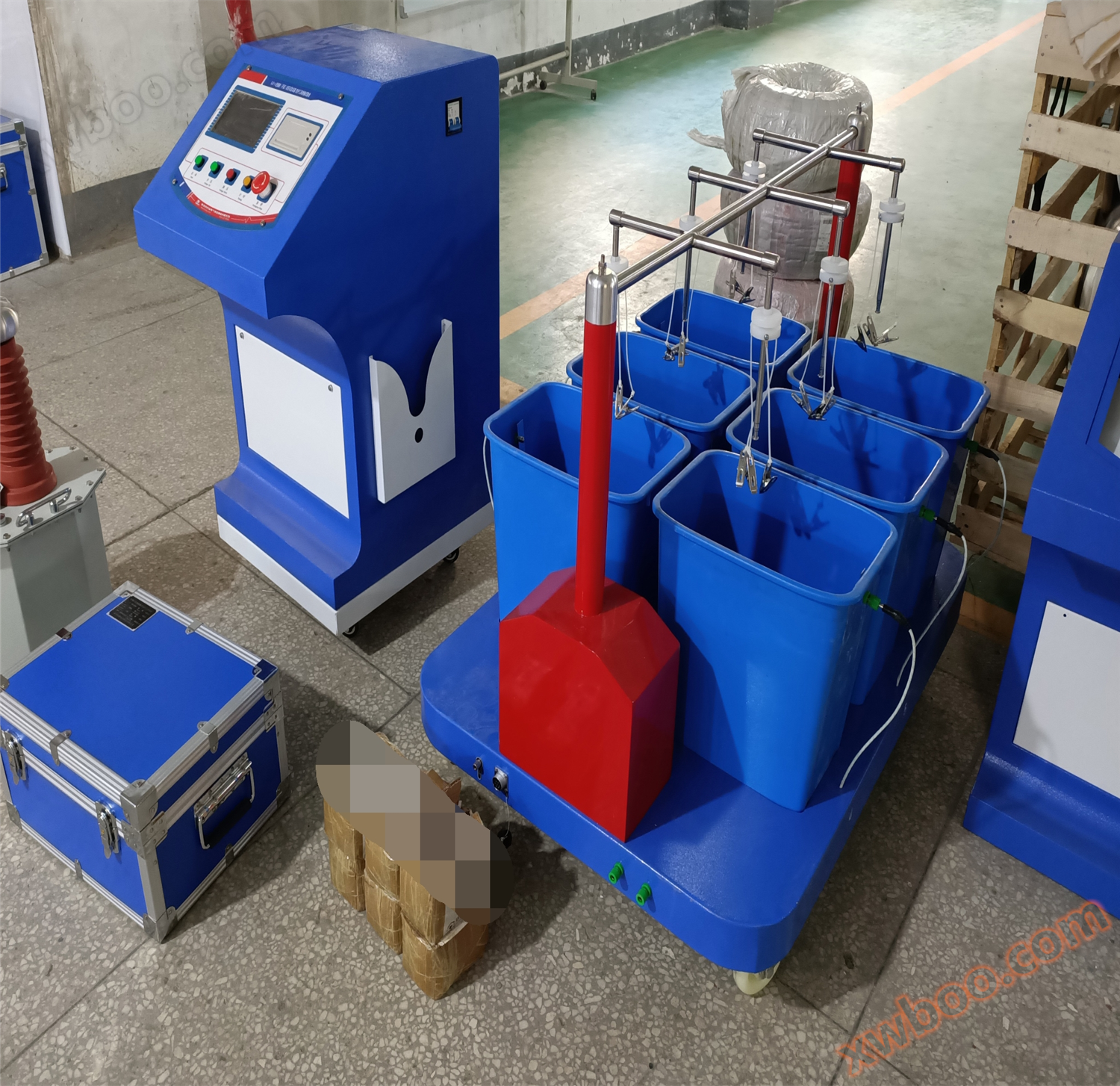

Insulated boots and gloves voltage withstand test device
